Replace lid Installed (Foldaway range)

How to replace a Foldaway attic ladder lid where the attic ladder is installed. Models: FT30, FA30, FTW30

Step 1
Send somebody into the attic space and have another person down below who will close and latch the ladder.

Step 2

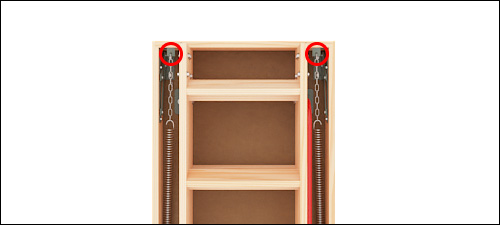

Release the spring tension by unlinking the S hook that connects the chain to the bracket.

Step 3

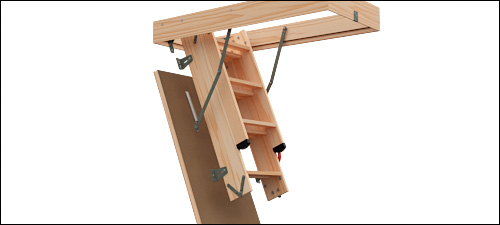

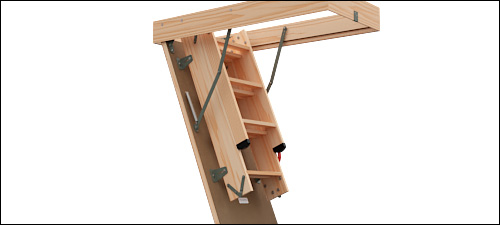

Carefully pull down the attic ladder and lid until the upper and lower stay arms lock into position.

Step 4

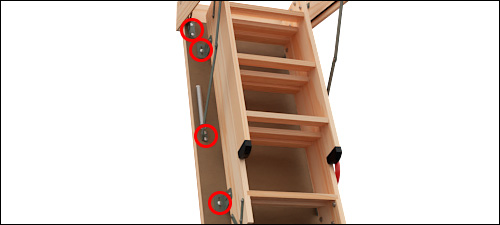

Remove all the screws that connect the hardware to the lid.

Step 5
Remove the old lid and place the replacement lid in the same position.

Step 6
Refix all the screws into the new lid using the predrilled holes as a guide.

Step 7

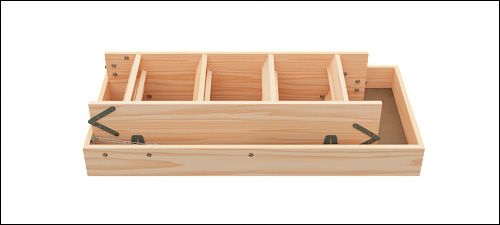

Close and latch the attic ladder to reconnect the S hooks.
